SPA ELECTROMASH
EQUIPMENT FOR SMALL HYDROPOWER POWER PLANTS
We offer a full range of services for the production of equipment for small hydropower plants.
Cost estimates, terms, and delivery times are available upon request.
You can send your quote details to office@npoelectro.pro or use the request form below. Our specialist will contact you shortly.

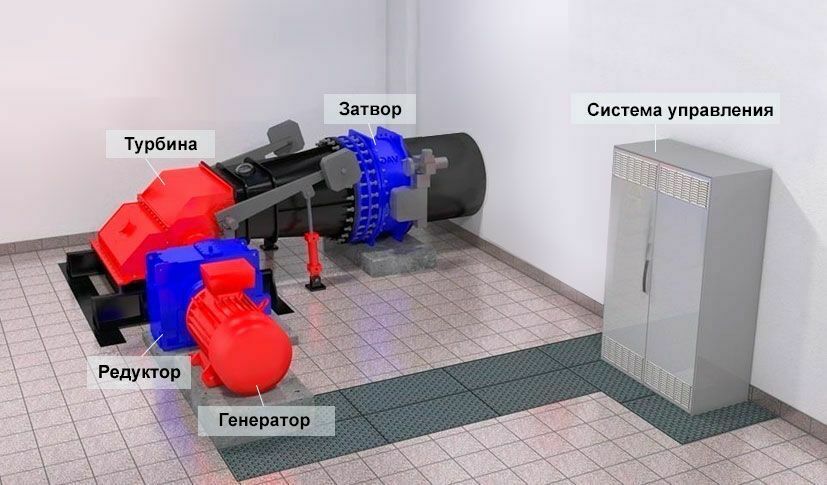

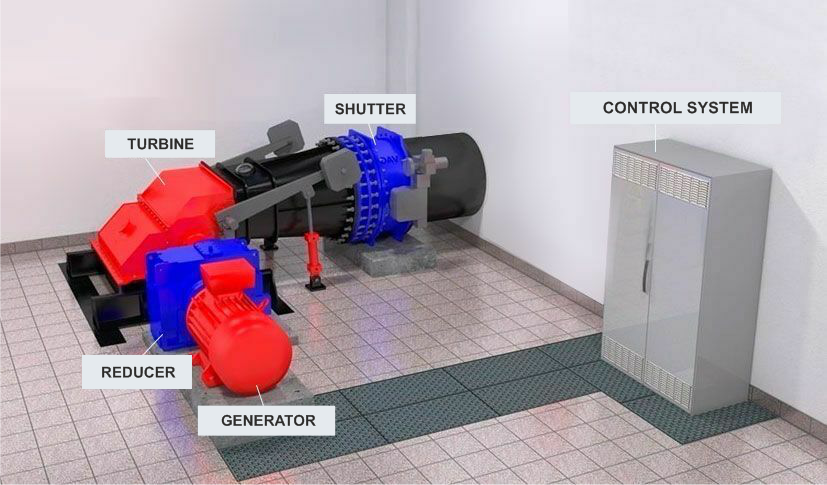

CROSSFLOW TURBINES - BANKS (TRANSVERSE)
TECHNICAL PARAMETERS
- Power from 20 to 5000 kW
- Flow rates from 0.05 to 10.0 m³/s
- Heads from 3 to 200 m

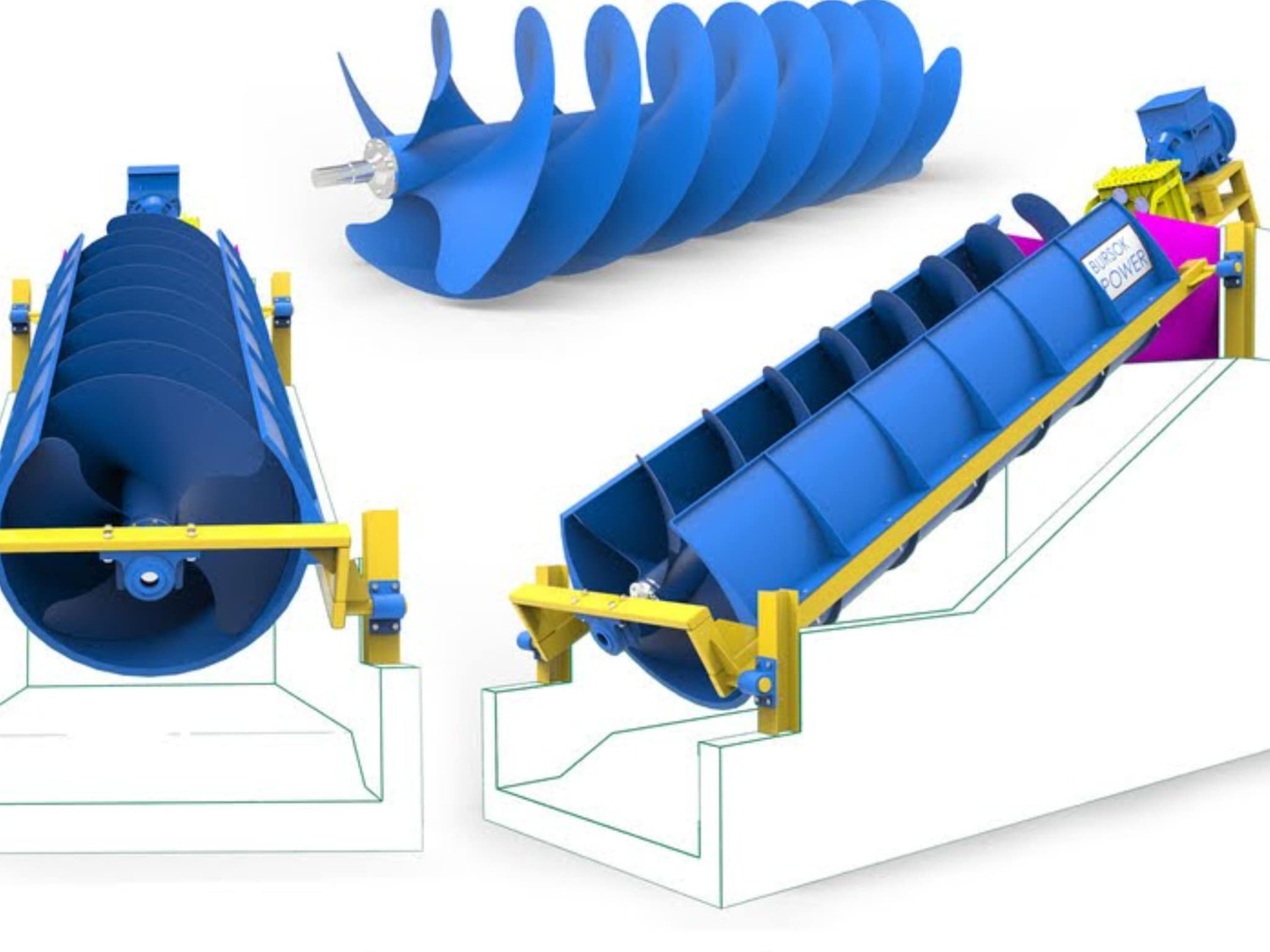

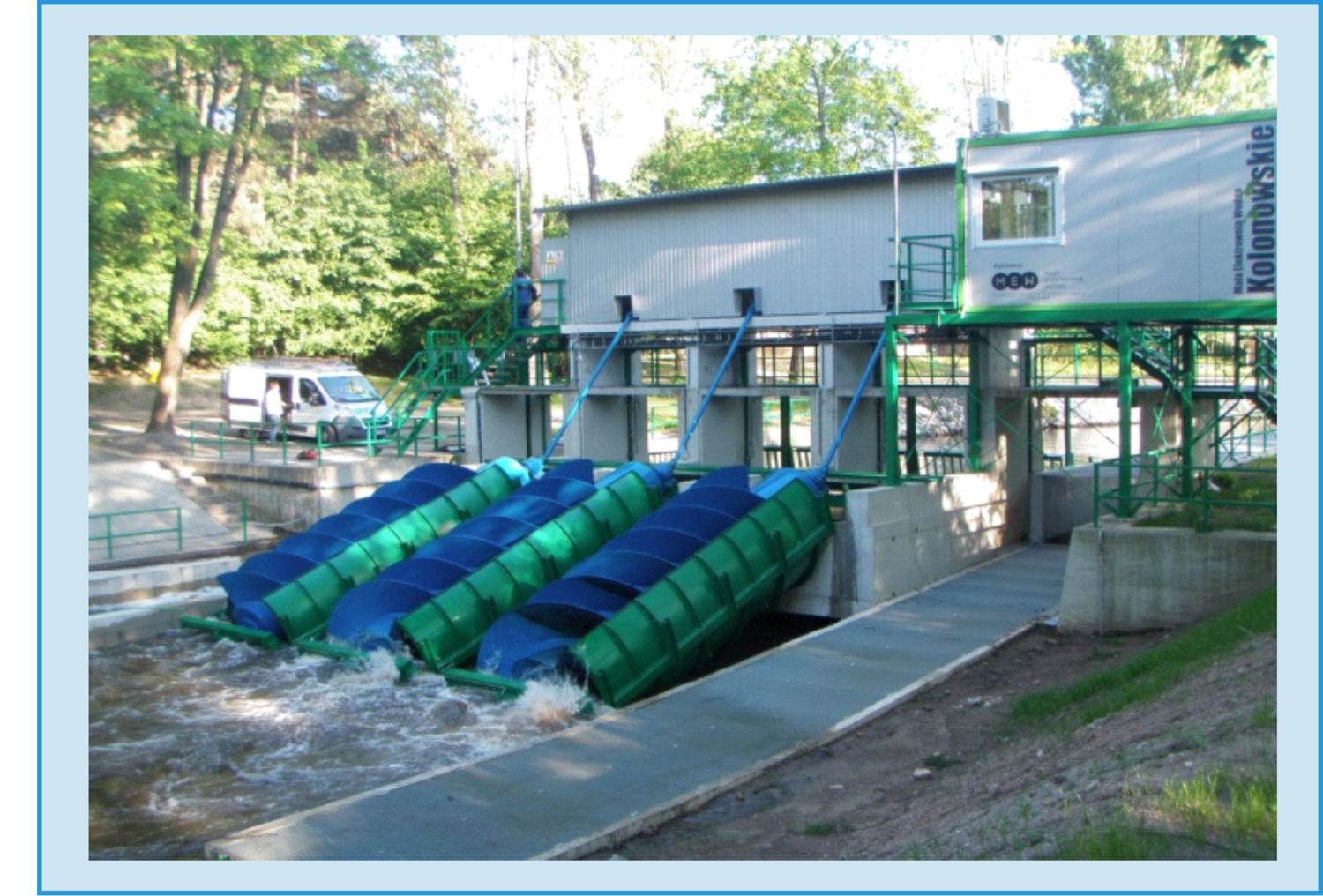

SCREW TURBINES
OPERATING PRINCIPLE OF A SCREW TURBINE FOR A SMALL HYDROPOWER POWER PLANTS
Freely flowing water drains into a trough with a screw installed in it. The water's mass acts along the entire length of the trough, rotating the screw. At the end of the screw, water flows out of the last turn of the screw into the flow. The system operates on the principle of Archimedes' screw.
Screw hydroelectric power plants can operate with small pressure drops and significant fluctuations in water flow.
TECHNICAL PARAMETERS OF SCREW TURBINES
- Power up to 500 kW
- Flow rate from 0.3 to 10 cubic meters/sec
- Head from 1.0 to 10 meters
- Inclination angle 22 - 36 degrees
- Auger diameter from 0.7 to 4 m
- Efficiency up to 85%

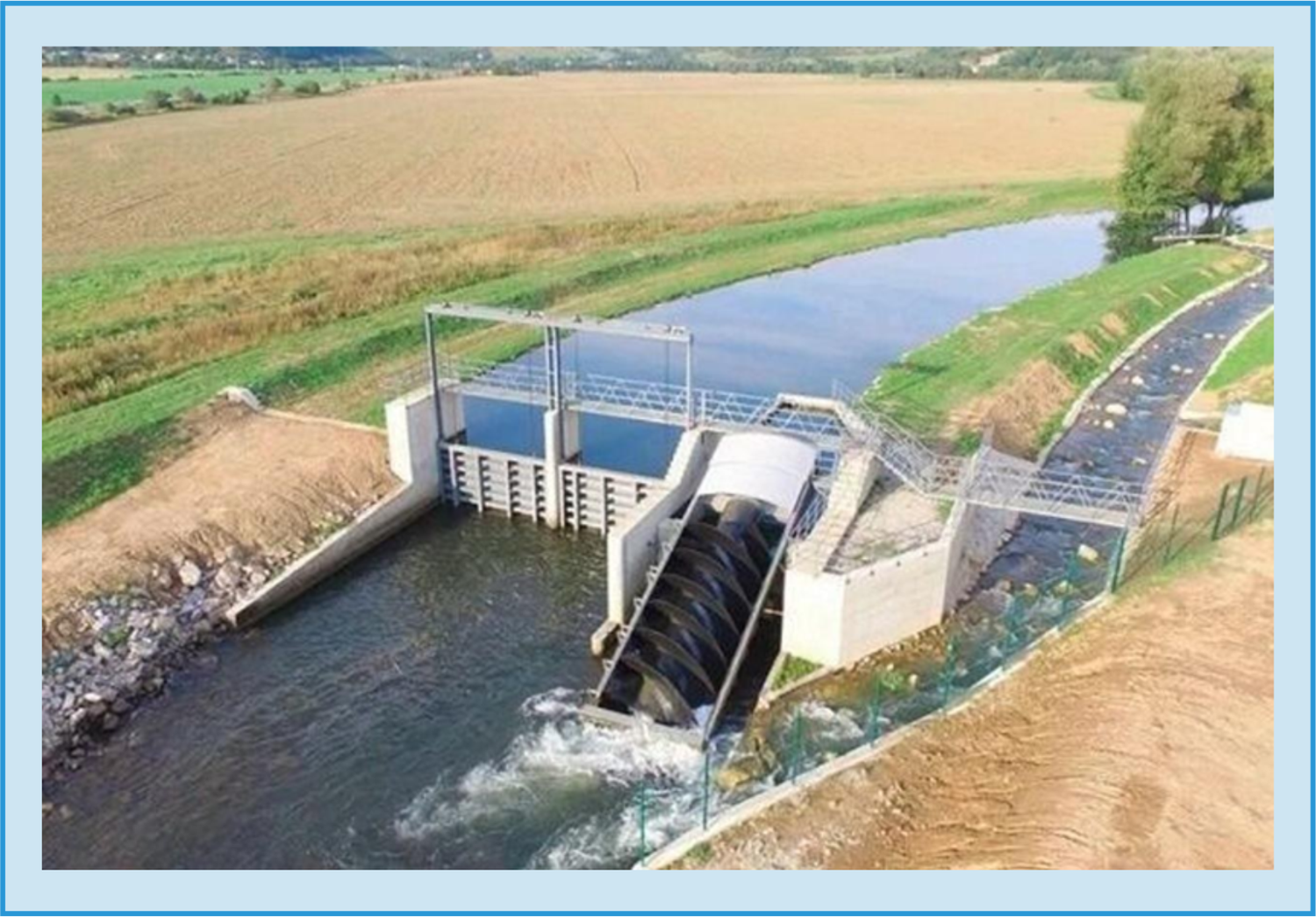

Screw turbines are used on small rivers, canals, and streams with low pressure drops and flow rates.

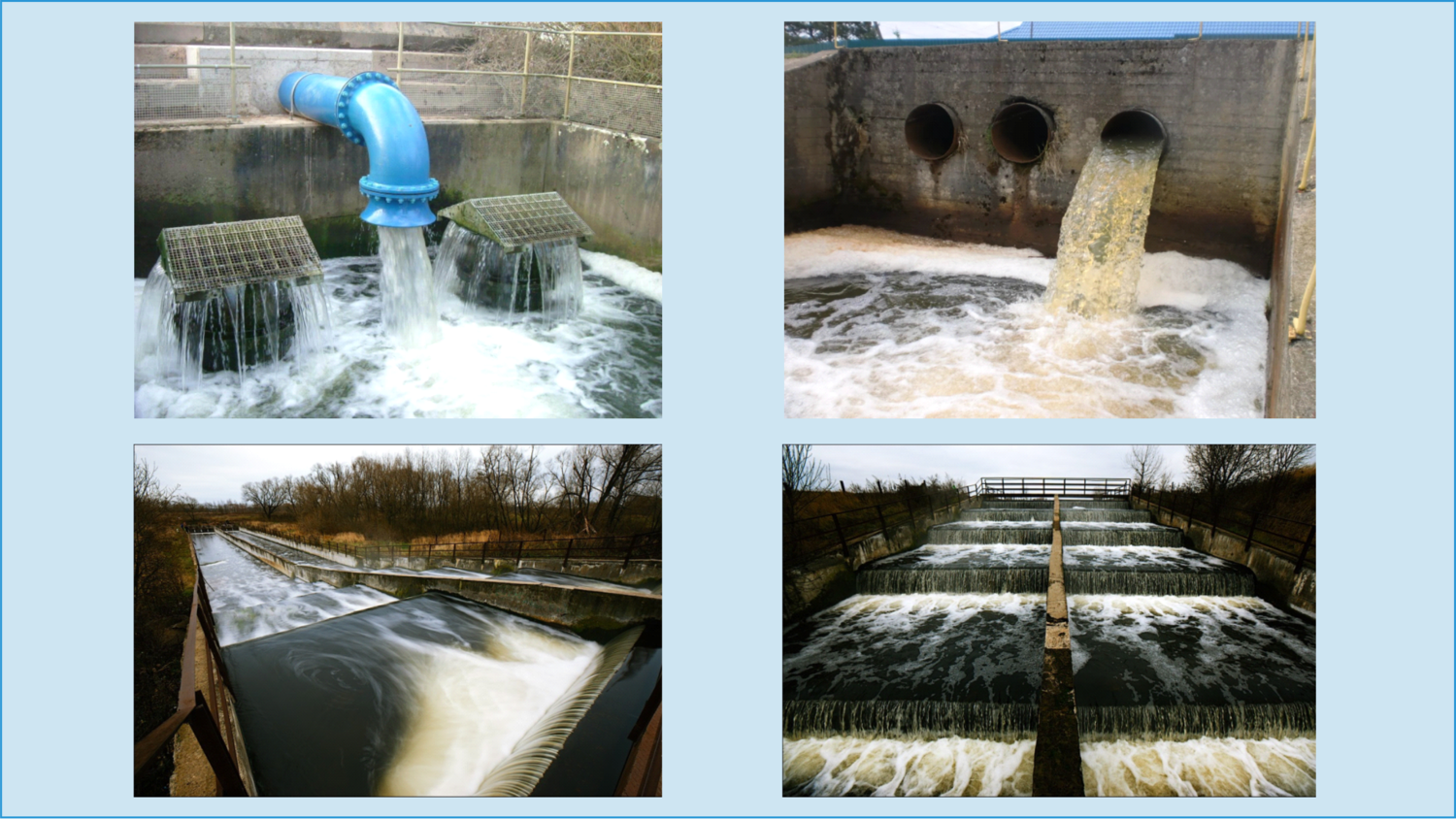

UTILIZING HYDROPOWER POTENTIAL AT TREATMENT TREATMENT FACILITIES
When treated water is discharged from treatment plants, there are elevation changes from the discharge point to the discharge point.
Electricity can be generated by utilizing the HYDROPOWER POTENTIAL created at various stages of the water treatment process.

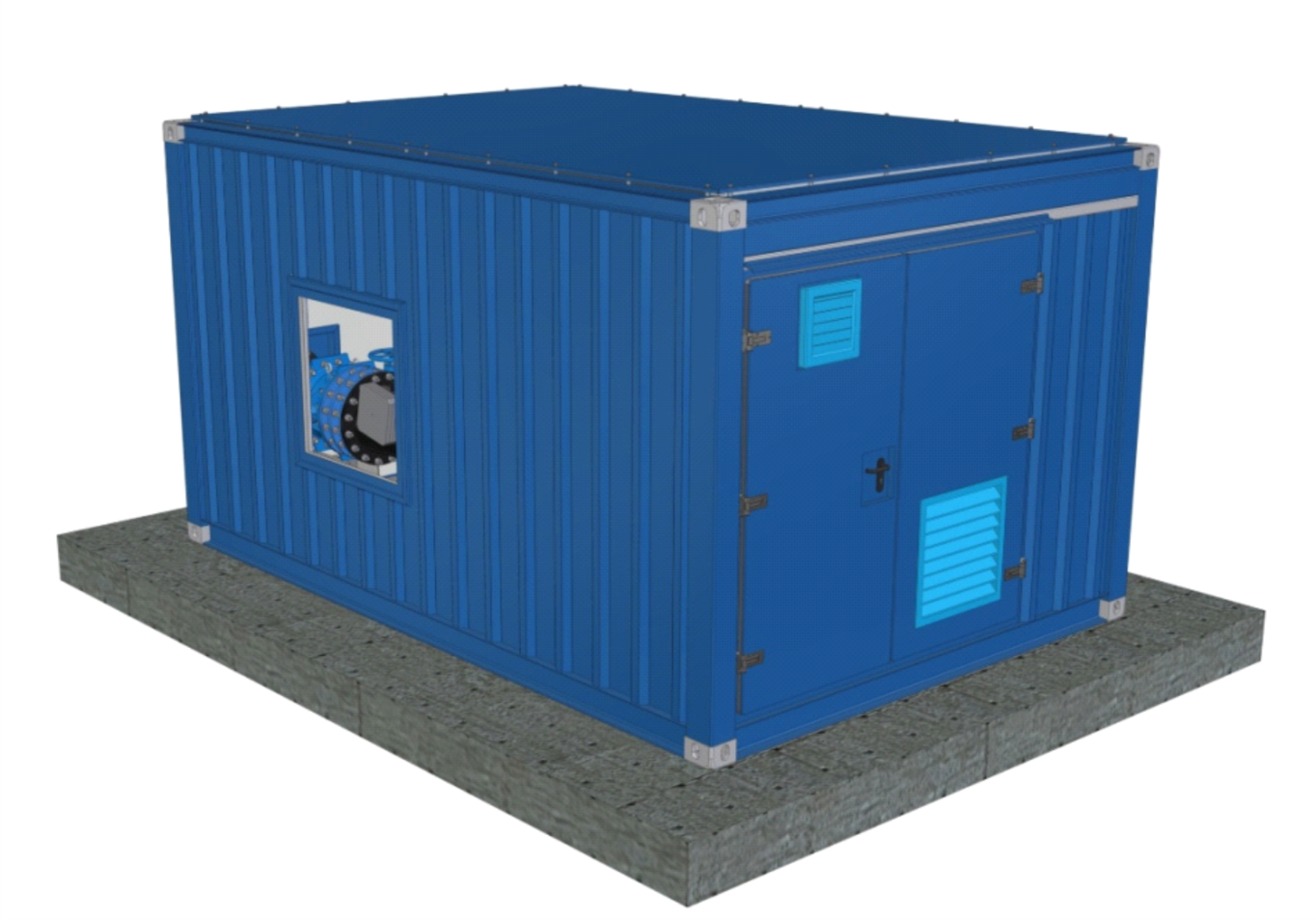

CONTAINER-BASED SMALL HYDROPOWER POWER PLANTS

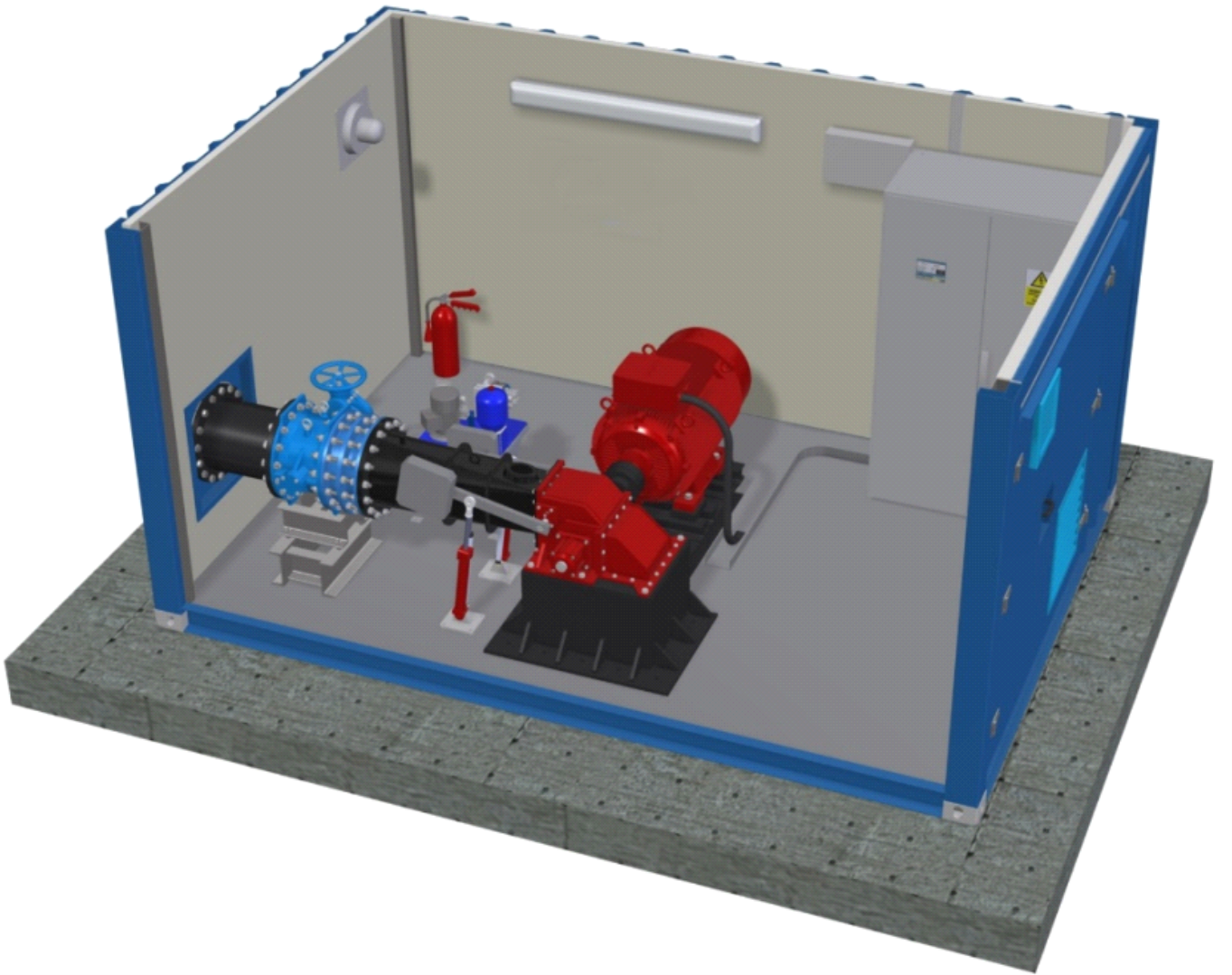

Compact container-based small hydropower plants are installed in a special container. This allows for turnkey delivery of small hydropower plants without construction or installation. Installation, assembly, and commissioning of all components are performed at the factory. If the supply pipeline and foundation slab are prefabricated, commissioning of the small hydropower plant is possible immediately after delivery of the container to the site. This system can supply electricity either to the main grid or to the local grid in island mode.

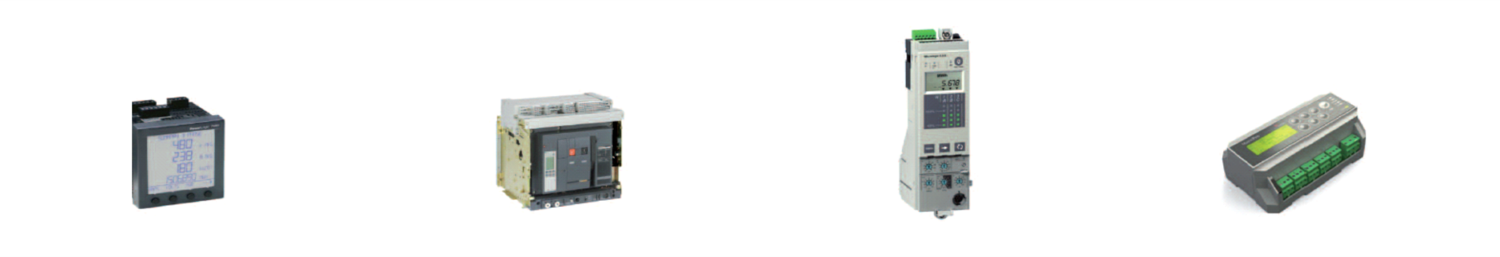

CONTROL SYSTEM

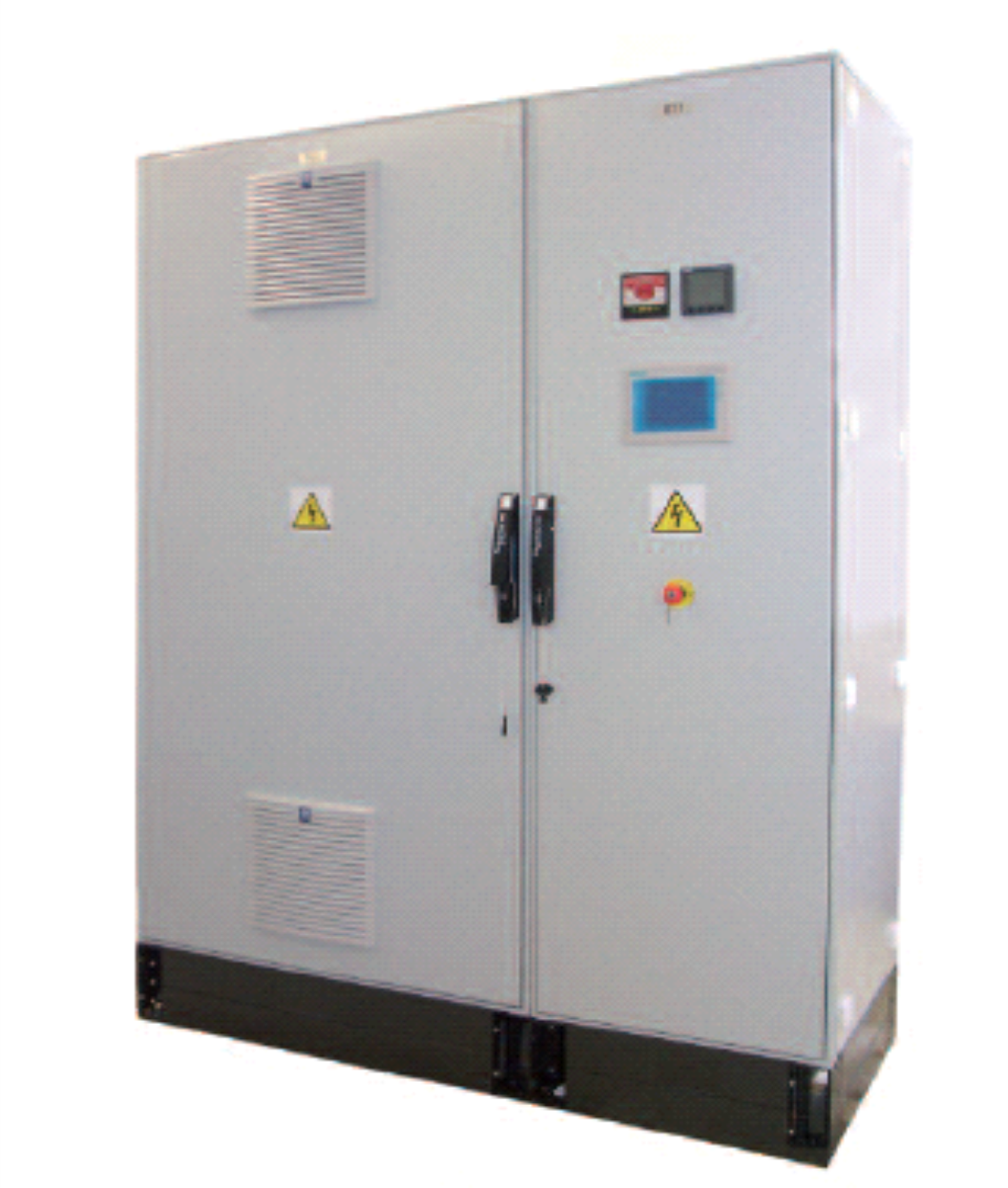

STANDARD CONTROL CABINET
- For operation in parallel with the main grid, standalone operation at remote locations, or combined operation;
- Process visualization and digital data storage;
- Remote control and monitoring (SCADA or GSM);
- Water level regulation;
- Reliable safety system for the grid and generator;
- Centralized control for optimal operation of multiple turbines.
